Overview
MkniXPost is a GUI cross-platform post processor for intrepreting MkniX analyses. MkniX is a code design for the simulation of nonlinear flexible multibody systems, including thermal effects.
Characteristics
- Timeline control.

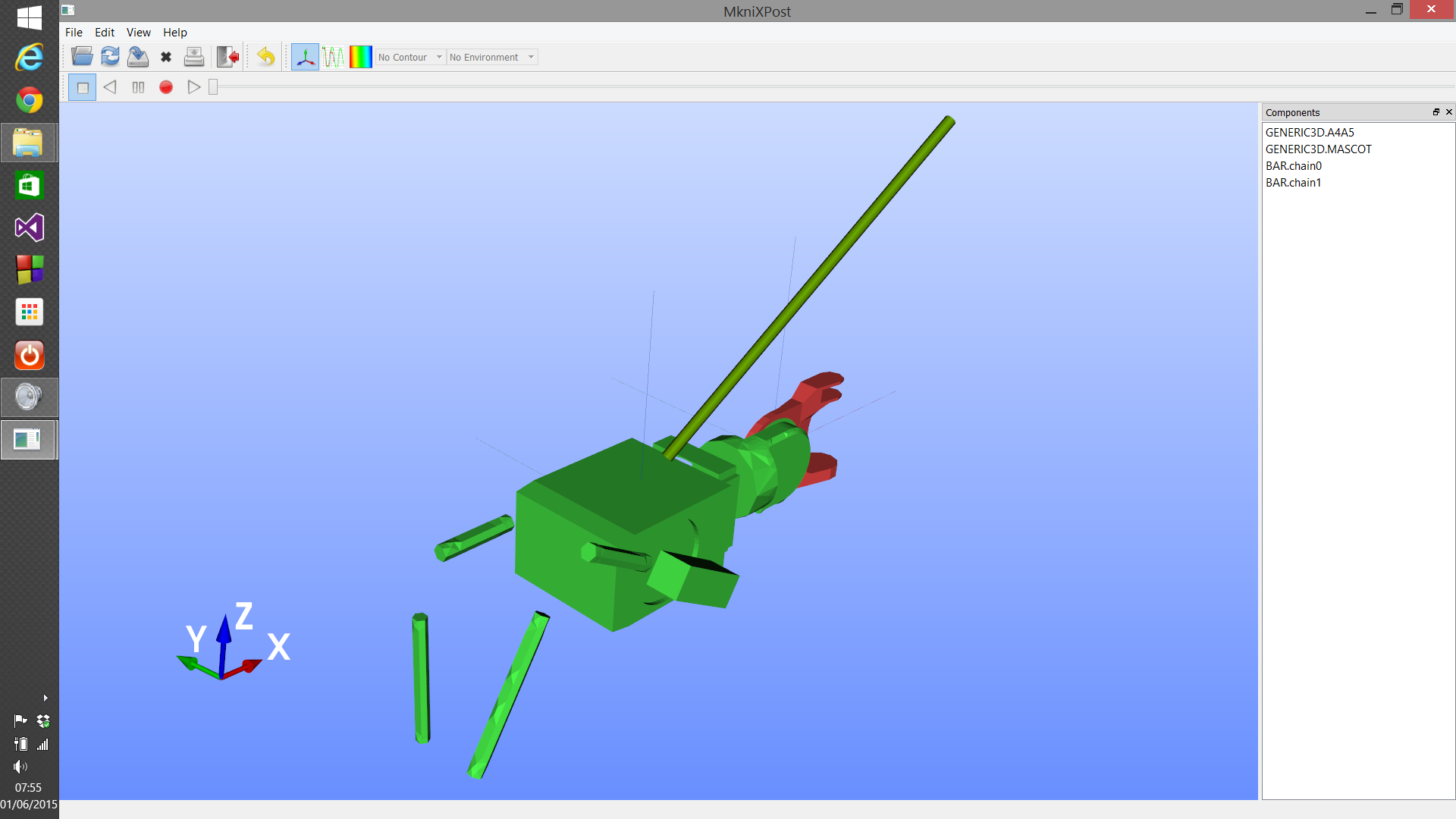

- 3D graphical window with interactive mouse manipulation.

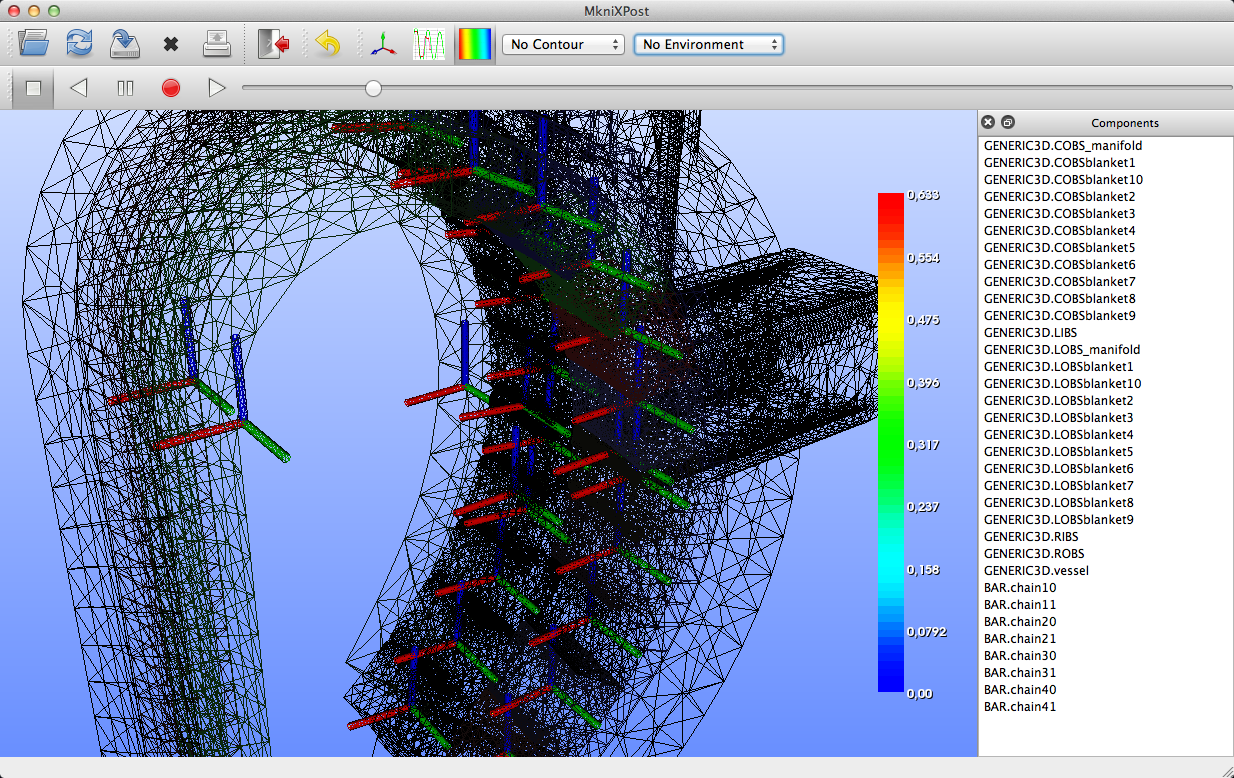

- Rendered surfaces or wire representation of bodies.

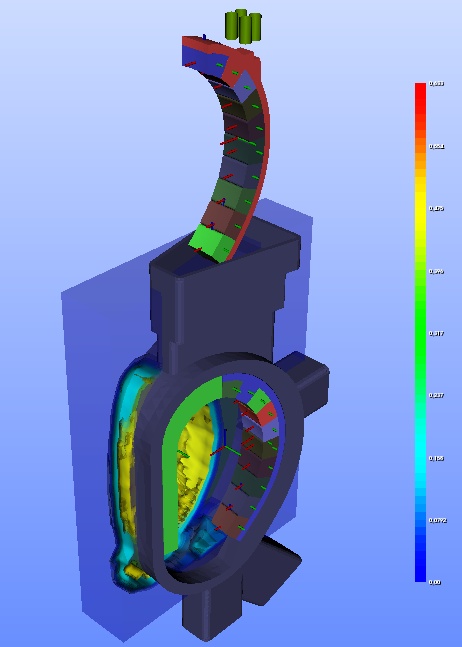

- Maps of stress and temperature fields.

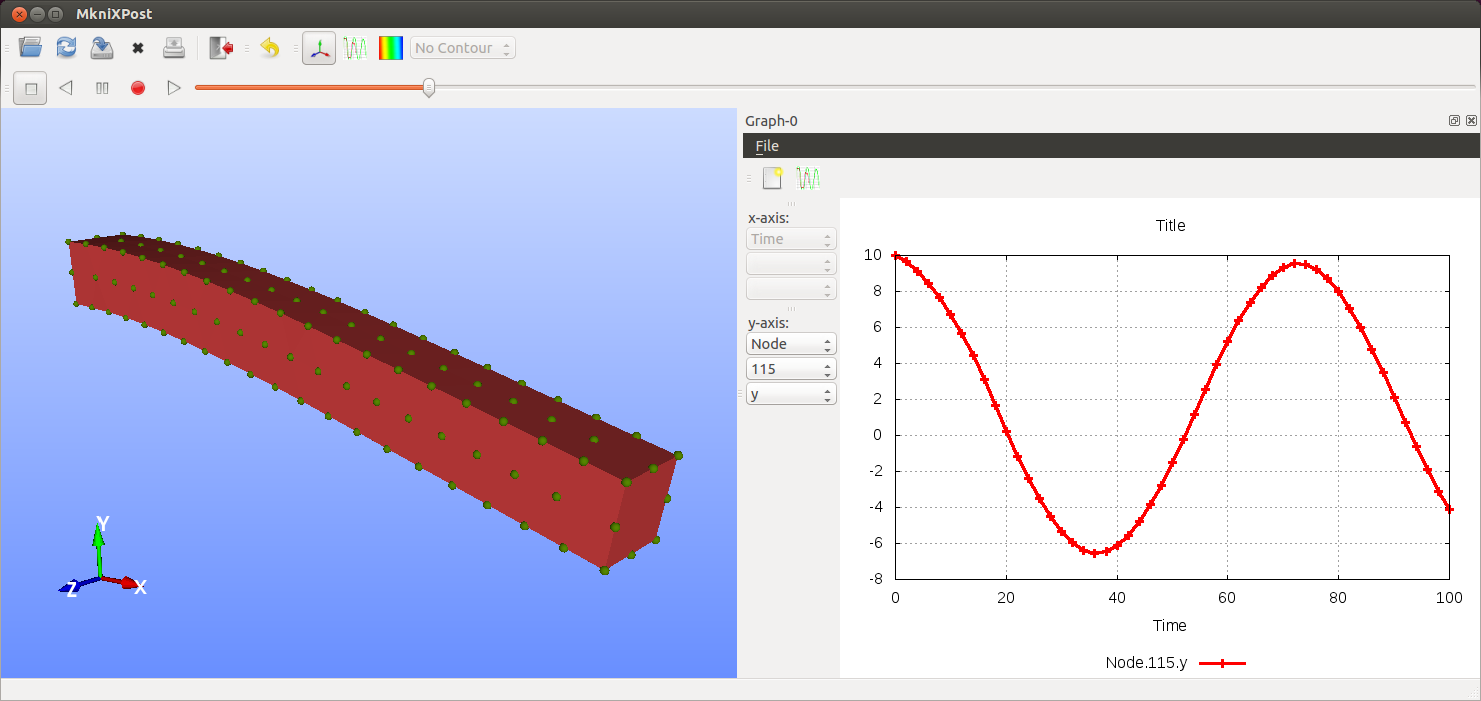

- 2D graphs plots of any result (DoF, energy, reactions, etc).
- Image and video capture.
- Stereographic rendering for depth sensing.
- Built on top of cross-platform toolkits (Qt, VTK, gnuplot).
Building and testing
See README.md for a description of requirements and procedure for building the MkniX library and using it for creating binary executables.
License
MkniXPost is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.
